ORBIS OS230 TUBULAR POST & RAIL PERFORATED INFILL SYSTEM SIDE FIX
ORBIS OS231 TUBULAR POST & RAIL PERFORATED INFILL SYSTEM TOP FIX
ORBIS™ OS230/OS231
EFFECTIVE. DEPENDABLE. REFINED.
Orbis is our most popular system, utilised in many varied applications due to its flexibility and is very quick to install.Â
Perforated panel infills offer a solid solution where glass is not suitable.
Key Benefits
- Pre-manufactured to speed up installation
- No hot works on site
- Addresses modesty concerns
-
1⌄Fittings
L3 - D-Lug
L4 - Banjo Lug
-
2⌄Finishes
Satin polish stainless steel
Bright polish stainless steel
PPC solid colour
PPC metallic colour
Hardwood (handrails only)
Harwood effect
-
3⌄Infill
Mild steel powder coated perforated panel (for internal applications)
Aluminium powder coated perforated panel (for external applications)
-
4⌄Handrail Fittings
BB6 - Inline handrail
BB3 - Offset handrail with radius bracket
-
5⌄Side & Top Fix Fitting
SF1 - 2 point side fix
TF1 - Top fix (with circular cover rose)
APPLICATIONS
STADIUMS
HOTELS & LEISURE
HEALTHCARE
RESIDENTIAL
EDUCATION
TRANSPORT
COMMERCIAL
RETAIL
COMMUNITY & PUBLIC
FAQS
-
⌄Can perforated panel infills have specific perforation patterns?
There is a standard margin and hole pattern, noted on the datasheets. Bespoke perforations can be offered at extra cost.
-
⌄What are the recommendations for handrail finger traps?
Handrails to be 50mm to 75mm (minimum of 50mm) from the wall to outer circumference of handrail.
-
⌄What are the design considerations for stair widths influencing balustrade & handrails?
This depends upon which regulations are being applied, and which the critical dim is going to be; 'Clear Width' between handrails (Access requirements) or 'Escape Width' (Evacuation requirements), other considerations for design are: double handrail which can affect achievable widths, plus some stair widths in excess of 2m (or 1.4m for stairs taller than 30m), which require central handrails.
COMPLIANCE
All of our balustrade and handrail systems are fully compliant to the appropriate regulations, including:
– Construction Products Regulations 2013 (CPR 2013)
– BS EN 1090-1 (CE Mark Accredited)
– BS6180
– BS6399/EN1991
– BS8300 -BS5395
– AD Part M & Part K
– Disability Discrimination act (DDA) guidelines now included in the Equality act
– Carries Kitemark to demonstrate compliance
CASE STUDIES

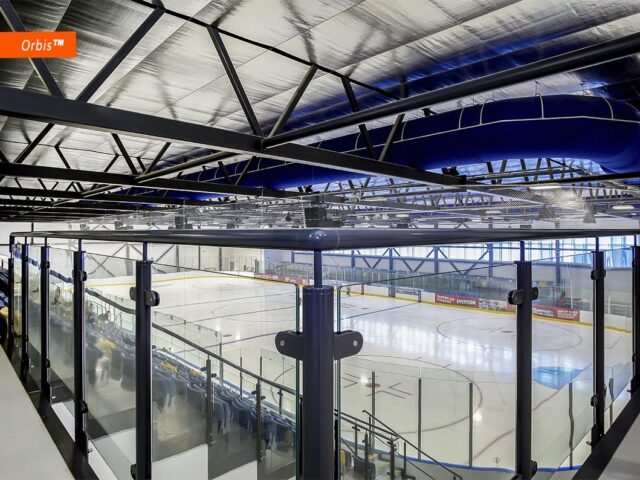

Sapphire Ice & Leisure, Romford
Orbis OS211 Glass Infill Top Fix / Orbis OS231 Perforated Infill Top Fix / Orbis OS200 Vertical Bar Infill Side Fix / Orbis OS201 Vertical Bar Infill Top Fix
Read More
Royton Health Centre, Oldham
Duo D411 Glass Infill Top Fix / Orbis OS230 Perforated Infill Side Fix
Read MoreExtremely helpful in delivering value for money and advising on the best products for a particular solution.”
Senior Quantity Surveyor | Willmott Dixon Construction
FINISHES
Satin polish stainless steel
Low maintenance and highly durable for internal and external use.
Bright polish stainless steel
For use in leisure facilities and coastal locations.
PPC solid colour
Polyester powder coating available in various colours. Contact Sales for more info.
PPC metallic colour
Metallic polyester powder coating available in various colours. Contact Sales for more info.
Hardwood (Handrails only)
Available in variety of woods. Contact Sales for more info.
Hardwood Effect
Available in a variety of wood effects. Contact Sales for more info.
INFILLS
Alternative infills.
Midrail
Horizontal midrails flow through the balusters to form a continuous line effect.
Handrail Only
Glass
Offers an uninterrupted eyeline, suitable in public and private applications. Available in an array of coloured tints and etched.
Vertical Bar
Robust modular panel solution ideal for utility areas and rear stairs.
Tension Wire
Stainless steel horizontal wire suitable for commercial ad non-public buildings.
COST INDICATION
