Case Studies

‘The Ark’ St George’s Primary School, Weybridge

St George’s junior school is an independent Roman Catholic school with a high standard of facilities.  Construction of ‘The Ark’ provided a new early years teaching block, which includes modern classrooms, a dedicated IT suite, a new assembly room and outdoor learning areas.

The two-storey building has a staircase at each end and Delta Balustrades’ Mono™ system was specified with powder-coated steel balusters and 11.5mm toughened and laminated glass infill panels. The Mono™ system handrails were provided in oak to offer a warmer finish in the primary school environment and each staircase features a dual handrail with one handrail mounted at a 600mm height for the children and the other in parallel at 900mm for the teachers.

The Ark features an outdoor teaching area at first floor level with a balcony accessed from the internal classrooms. Once again, Delta Balustrades’ Mono™ system was specified with powder coated balusters to match the grey of the window casings.  The 11.5mm toughened and laminated glass infill panels have no handrails but have been installed at a height of 1500mm to provide additional edge protection. A further small triangular balcony at the side of the building has been specified with the same system as the main first floor balcony.

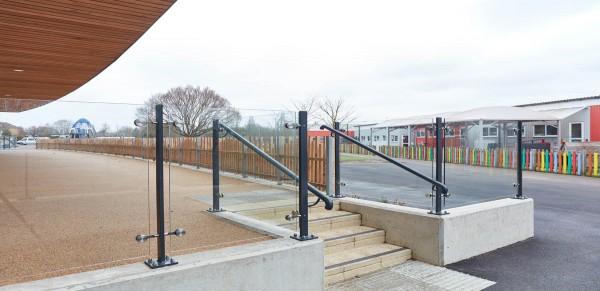

At ground level, the building features steps and ramps and a combination of Mono™ balusters and Orbis™ handrails with a Sigma stainless steel finish have been used to provide guarding, with 10mm toughened glass infill panels.
Finally, the stone steps leading to the nursery classrooms were specified with an Orbis™ handrail.

Specification

Year 2 Curved Balcony:
Product code: 0/MONO/H/LG
Balustrade: HiBuild™ powder coated Mono Balustrade
Infill: 11.5mm Toughened Laminated Glass

Year 2 Teaching Area:
Product code: 0/MONO/H/LG
Balustrade: HiBuild™ powder coated Mono Balustrade
Infill: 11.5mm Toughened Laminated Glass

External Balustrades:
Product code: EH50/MONO/H/0
Handrail: 50 Series HiBex™ powder coated
Balustrade: HiBex™ Powder Coated Mono Balustrade
Infill: n/a

IT Balcony:
Product code: 0/MONO/H/LG
Balustrade: HiBuild™ powder coated Mono Balustrade
Infill: 11.5mm Toughened Laminated Glass

Stair 1
Product code: D50/MONO/H/LG
Handrail: Delamere™ hardwood
Balustrade: HiBuild™ powder coated Mono Balustrade
Infill: 11.5mm Toughened Laminated Glass

Stair 2
Product code: D50/MONO/H/LG
Handrail: Delamere™ hardwood
Balustrade: HiBuild™ powder coated Mono Balustrade
Infill: 11.5mm Toughened Laminated Glass

Nursery Steps:
Product code: D50/MONO/H/0
Handrail: Delamere™ hardwood
Balustrade: HiBuild™ powder coated Mono Balustrade
Infill: n/a
